Testbed

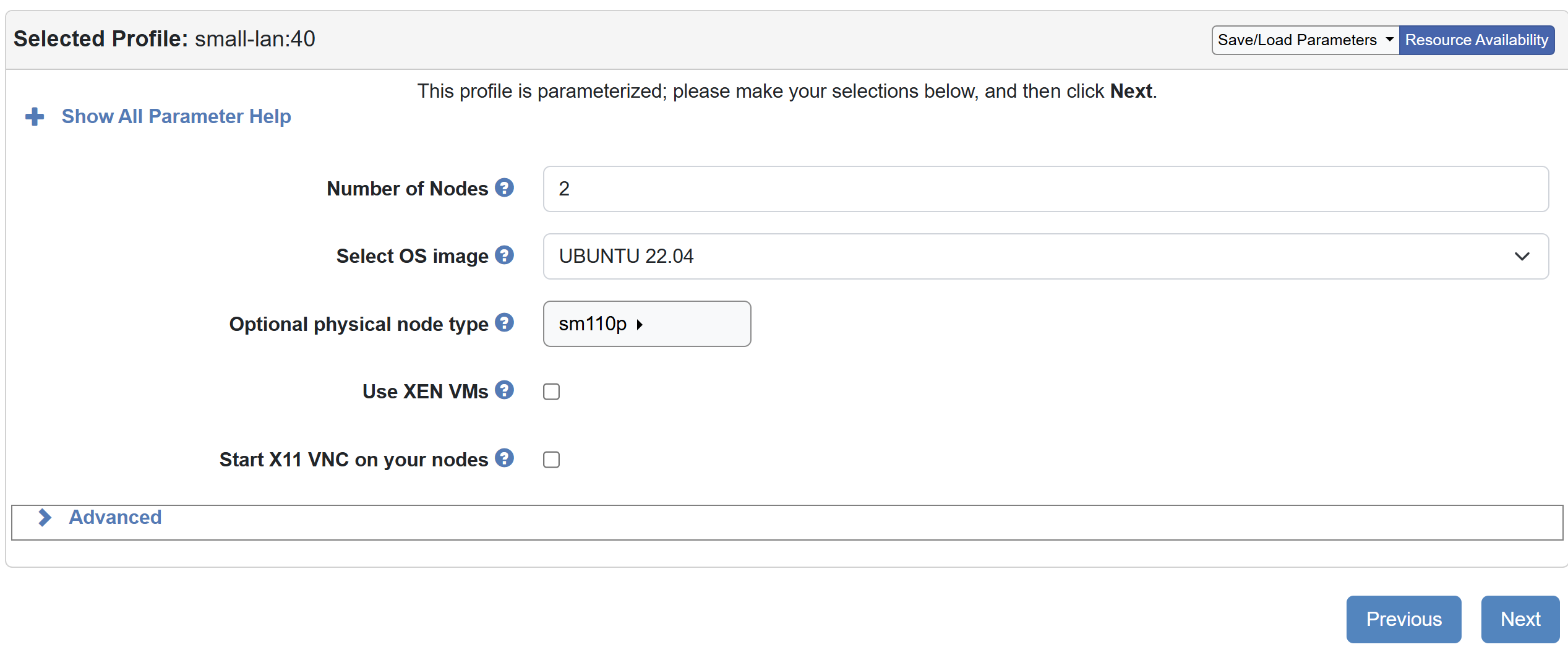

The testbed consists of 2 sm110p servers from CloudLab.
| Component | Specification |
|---|---|
| CPU | One Intel Xeon Silver 4314 16-core CPU at 2.40 GHz |
| RAM | 128GB ECC DDR4-3200 Memory |
| Disk 1 | One 960 GB Intel SATA 6G SSD (SSDSC2KG960G8) |
| Disk 2 | Four 960 GB Samsung PCIe4 x4 NVMe (MZQL2960HCJR-00A07) |
| NIC 1 | Dual-port Mellanox ConnectX-6 LX 25Gb NIC |
| NIC 2 | Dual-port Mellanox ConnectX-6 DX 100Gb NIC |
Update the Kernel Source
All nodes run Ubuntu 22.04 with kernel version 5.15.173.
sudo apt-get update
sudo apt-get install -y linux-source-5.15.0
cd /usr/src
sudo tar -xvf linux-source-5.15.0.tar.bz2
The kernel source code are modified according to the instructions in the Kernel Patch section. After making the modifications, we compile and install the new kernel on both nodes:
sudo apt-get install -y flex bison build-essential libncurses-dev libssl-dev libelf-dev bc dwarves
cd /usr/src/linux-source-5.15.0
# The original config file name may vary, please check the /boot directory
sudo cp /boot/config-5.15.0-131-generic .config
sudo make -j31
sudo make modules_install
sudo make install
sudo reboot
Installing Required Tools
Install fio
We install fio version 3.36 as follows:
cd ~
wget https://brick.kernel.dk/snaps/fio-3.36.tar.gz
sudo apt-get update
sudo apt-get install build-essential libaio-dev zlib1g-dev
tar -xzvf fio-3.36.tar.gz
cd fio-3.36
./configure
make -j32
sudo make install
sudo fio -v
Setting Up an NVMe-over-TCP Target
This section describes how to configure an NVMe-over-TCP target by compiling and loading the necessary kernel modules, creating an NVMe subsystem and namespace, and setting up a network port for NVMe/TCP communication.
1. Compile and Load the nvmet-tcp Kernel Module
Since we have modified the kernel source code, we need to recompile the kernel modules:
cd /usr/src/linux-source-5.15.0
sudo make modules SUBDIRS=drivers/nvme/target -j31
sudo insmod ./drivers/nvme/target/nvmet.ko
sudo insmod ./drivers/nvme/target/nvmet-tcp.ko
2. Create the NVMe Subsystem and Namespace
sudo mkdir -p /sys/kernel/config/nvmet/subsystems/subsystem1
sudo sh -c "echo 1 > /sys/kernel/config/nvmet/subsystems/subsystem1/attr_allow_any_host"
sudo mkdir -p /sys/kernel/config/nvmet/subsystems/subsystem1/namespaces/1
sudo sh -c "echo -n /dev/nvme0n1 > /sys/kernel/config/nvmet/subsystems/subsystem1/namespaces/1/device_path"
sudo sh -c "echo 1 > /sys/kernel/config/nvmet/subsystems/subsystem1/namespaces/1/enable"
3. Create and Configure an NVMe-over-TCP Port
sudo mkdir -p /sys/kernel/config/nvmet/ports/1
sudo sh -c "echo ipv4 > /sys/kernel/config/nvmet/ports/1/addr_adrfam"
# use ifconfig to check the IP address of the target node
sudo sh -c "echo 10.10.1.2 > /sys/kernel/config/nvmet/ports/1/addr_traddr"
sudo sh -c "echo tcp > /sys/kernel/config/nvmet/ports/1/addr_trtype"
sudo sh -c "echo 4420 > /sys/kernel/config/nvmet/ports/1/addr_trsvcid"
4. Link the Subsystem to the Port
sudo ln -s /sys/kernel/config/nvmet/subsystems/subsystem1 /sys/kernel/config/nvmet/ports/1/subsystems/subsystem1
Setting Up an NVMe-over-TCP Initiator
1. Install the nvme-cli Package (if not already installed)
sudo apt install nvme-cli
2. Unload Any Existing nvme-tcp Module (if loaded)
sudo rmmod nvme_tcp
sudo rmmod nvme-fabrics
3. Recompile the Kernel Modules
cd /usr/src/linux-source-5.15.0
sudo make modules SUBDIRS=drivers/nvme/host -j31
sudo modprobe nvme-core
sudo insmod ./drivers/nvme/host/nvme-fabrics.ko
sudo insmod ./drivers/nvme/host/nvme-tcp.ko
4. Connect to the NVMe-over-TCP Target
sudo nvme connect -t tcp -n subsystem1 -a 10.10.1.2 -s 4420
After connecting to the target, you can verify the connection by running sudo nvme list. The remote NVMe device should appear as something like /dev/nvme4n1:
> sudo nvme list
Node SN Model Namespace Usage Format FW Rev
--------------------- -------------------- ---------------------------------------- --------- -------------------------- ---------------- --------
/dev/nvme0n1 S64FNE0R906008 SAMSUNG MZQL2960HCJR-00A07 1 22.08 GB / 960.20 GB 512 B + 0 B GDC5302Q
/dev/nvme1n1 S64FNE0RA02592 SAMSUNG MZQL2960HCJR-00A07 1 7.57 GB / 960.20 GB 512 B + 0 B GDC5302Q
/dev/nvme2n1 S64FNE0RA03068 SAMSUNG MZQL2960HCJR-00A07 1 7.65 GB / 960.20 GB 512 B + 0 B GDC5302Q
/dev/nvme3n1 S64FNE0RA03066 SAMSUNG MZQL2960HCJR-00A07 1 8.66 GB / 960.20 GB 512 B + 0 B GDC5302Q
/dev/nvme4n1 a5ac4cae45bdc3c0b595 Linux 1 960.20 GB / 960.20 GB 512 B + 0 B 5.15.173
5. Installing the iniparser Library
The ntprof tool requires the iniparser library to parse configuration files. You can install it using:
sudo apt isntall libiniparser-dev
